0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

Brand Name : ESEN

Model Number : TX096PM6428

Certification : ISO9001/ISO14001

Place of Origin : Shenzhen China

MOQ : 1000PCS

Price : Please make an enquiry

Payment Terms : T/T,L/C

Supply Ability : 300K/mth

Delivery Time : 2-4 weeks

Packaging Details : All the products are packed in right way

Display Mode : Passive Matrix

Display Color : Monochrome (White)

Drive Duty : 1/128 Duty

Outline Drawing : According to the annexed outline drawing

Number of Pixels : 64 x128

Panel Size : 14 x 28 x 1.22 (mm)

Active Area : 10.86 x 21.74 (mm)

Pixel Pitch : 0.17 x 0.17(mm)

Pixel Size : 0.15 x 0.15 (mm)

Driver IC : SSD1312

FP C Numbe : NFP1312-24

Interface : 4-wire SPI, I2C

Luminance : 120cd/m2

FPC Connecting Mode : 13 Pin Soldering FPC

Datasheet : Please contact service

Contact Now

0.96 inch 64 x 128 Yellow Blue Color Mono OLED Screen 13Pin SSD1312 3/4 Wire SPI I2C Parallel Monochrome PMOLED Display LCD Panel

Serial Interface Timing Characteristics: (4-wire SPI) (VDD - VSS = 1.65V to 2.4V, Ta = 25°C)

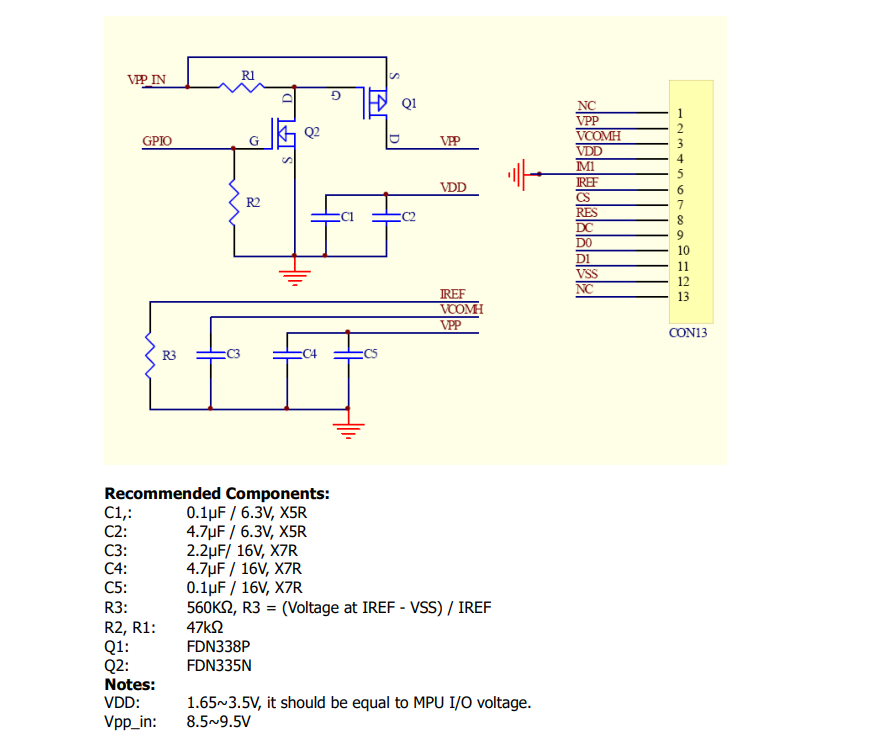

Special Tips:When design main board, Please add Electronic Switch circuit, otherwise, will be caused leak current

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

Active Area / Memory Mapping & Pixel Construction

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

Drawing

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

Pin Definition

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

Contents of Reliability Tests

0.96'' 64 X 128 Yellow Blue Mono OLED LCD Display 13Pin SSD1312 3/4 Wire SPI I2C

After the completion of the described reliability test, the samples were left at room temperature for 2 hrs prior to conducting the failure test at 23+-5°C; 55+-15% RH.

Package Specifications

Item Quantity
Module 810 per Primary Box
Holding Trays (A) 15 per Primary Box
Total Trays (B) 16 per Primary Box (Including 1 Empty Tray)
Primary Box (C) 1~4 per Carton (4 as Major / Maximum)
