0.5'' Passive Matrix OLED LCD Display Monochrome OLED LCD
Product Discription:
OLED's advantages in automotive display applications within the temperature range of -40°C to 85°C include exceptional environmental adaptability and lead-free eco-friendly characteristics. Automotive displays encompass instrument clusters, central control systems, etc., while 0.42-3.2-inch OLEDs can be used to display specific vehicle information or control interfaces.
Thanks to features such as energy efficiency, slim profile, wide viewing angles, and flexibility, OLEDs are widely applied across various fields, including smartphones, AR/VR devices, automotive electronics, wearable devices, and laptops.

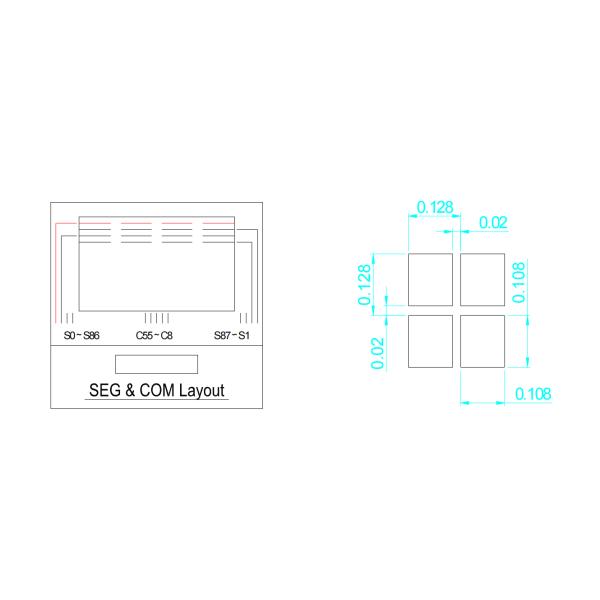

Active Area / Memory Mapping & Pixel Construction
Pin Definition
Absolute Maximum Ratings
Parameter | Symbol | Min | Max | Unit | Notes |
Supply Voltage for Logic | VDD1 | -0.3 | 3.6 | V | 1,2 |
Supply Voltagefor Display | VPP | -0.3 | 14.5 | V | 1,2 |
Supply Voltage for DC/DC | VDD2 | -0.3 | 4.8 | V | 1,2 |
Operating Temperature | TOP | -40 | 85 | °C |
|
Storage Temperature | TSTG | -55 | 125 | °C | 3 |
Life Time(380cd/m2) |
| 10,000 | - | hour | 4 |
Life Time(300cd/m2) |
| 30,000 | - | hour | 4 |
Life Time(240cd/m2) |
| 50,000 | - | hour | 4 |
Note 1: All the above voltages are on the basis of “VSS = 0V”.
Note 2: When this module is used beyond the above absolute maximum ratings, permanent breakage of the
module may occur. Also, for normal operations, it is desirable to use this module under the
conditions according to Section 3. “Optics & Electrical Characteristics”. If this module is used
beyond these conditions, malfunctioning of the module can occur and the reliability of the module
may deteriorate.
Note 3: The defined temperature ranges do not include the polarizer. The maximum withstood
temperature of the polarizer should be 80°C.
Note 4: VPP = 7.5V, Ta = 25°C, 50% Checkerboard.
Software configuration follows Section 4.4 Initialization.
End of lifetime is specified as 50% of initial brightness reached. The average operating lifetime at
room temperature is estimated by the aPPelerated operation at high temperature conditions.
FAQ:
Q: If there is a problem with the product, what is the after-sales service like?
A: If customers encounter any technical problems during use, our after-sales service team will provide remote online technical support to ensure that customers can solve the problem smoothly.
Q: How to customize the product?
A: Customers can customize the module shape, backlight brightness, LCD interface, etc. according to their own needs. We will provide personalized solutions according to the specific requirements of customers.
Q: How to get technical support?
A: If customers need technical support when using TX080HD-30MB-CT, they can contact our technical team by email, and we will reply within 24 hours.
Q: Do you provide samples?
A: Yes, we support sample application, and customers can get samples for testing and evaluation before placing an order.
